In The Box:

• Main Unit, 3 Spanners
• Screwdriver
• 12v DC Charging Cable
• 2 Manual Start Keys
• Fuel Filter
• 1 x 16A 3-phase plug
• 1 x 32A 230v plug
• Service Kit



Features:

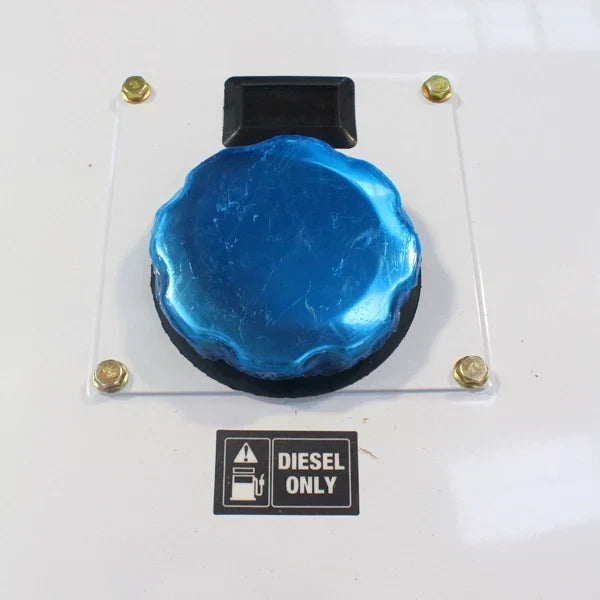

• Equipped with a 25L fuel tank for an increased running time of up to 30 hours.
• Multi-phase - Single & Three Phase capabilities, ideal for garages and workshops.
• Powered by a 4-stroke, air-cooled diesel engine.
• Produces a maximum output of 5.8kW / 7.5kVA.
• Uses ATS capabilities to automatically start and shutdown during a power cut. ATS is sold separately.
• Housed in a silenced case with a sound rating of just 70dB @ 7 metres.
• Covered by a 1-year standard warranty.
• Full UK service and parts operation to maintain your generator for years to come.



Technical Specification:

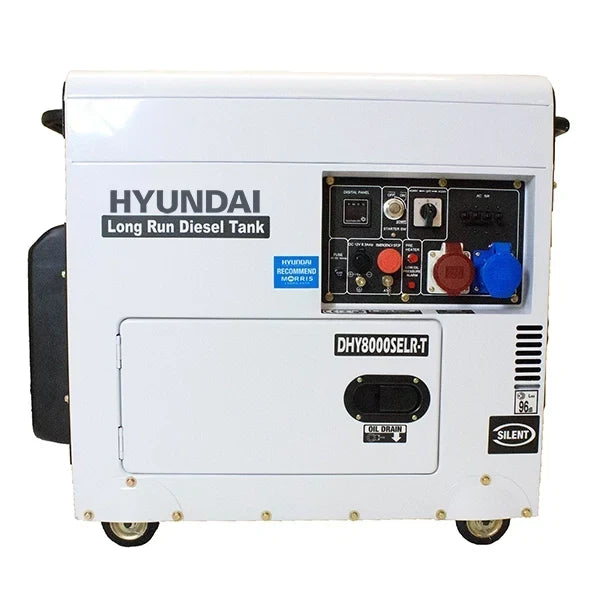

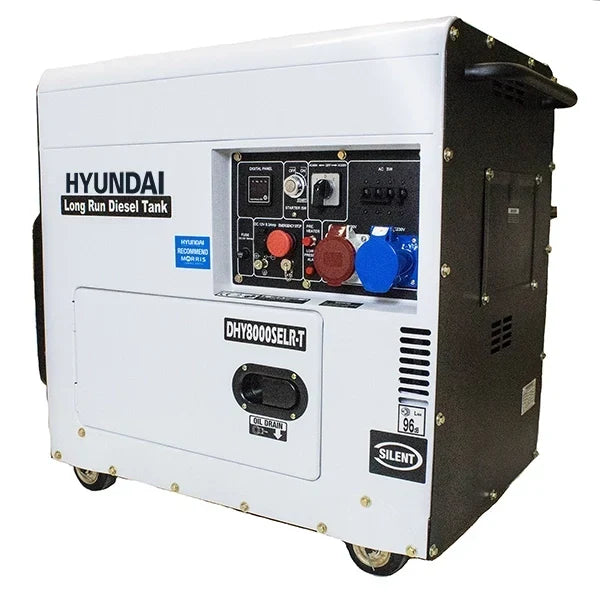

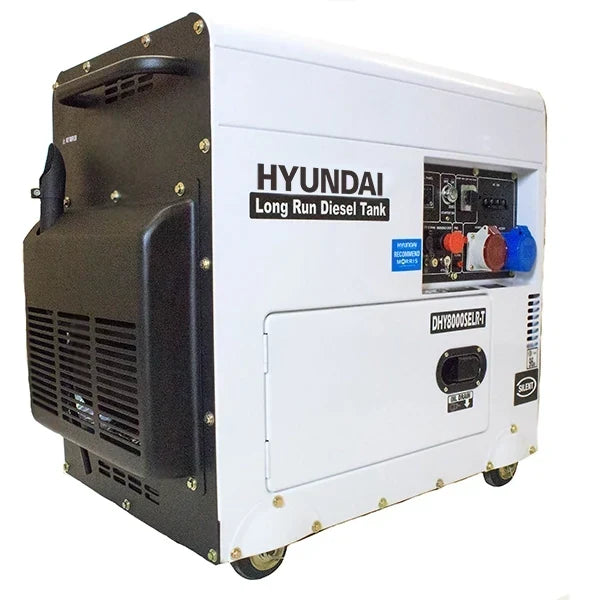

• Model - DHY8000SELR-T
• Rated/Prime kVA* - 6.3
• Rated/Prime kW - 5
• Max/Standby kVA* - 7.25
• Max/Standby kW - 5.8
• Phase - Single / 3-Phase
• Voltage - 230 / 415
• Connection Method(s) - Sockets - 1 x 400V/16A 1 x 230V/32A
• Rated Speed (RPM) - 3000
• Frequency (Hz) - 50
• Max/Continuous Current (Amps) - 230v 25 / 21 - 400v 10.5 / 9
• Power Factor (Cosφ) - 1 (Single Phase) / 0.8 (3-Phase)
• Fuel/Power Source - Diesel
• Power Output (hp) @ 3000rpm - 9
• Engine Displacement (CC) - 456
• No. of Cylinders - 1
• Recommended Oil Type - 15w40 / 10w40
• Oil Capacity (Litres) - 1.65
• Oil Filter Part No. - D450-B9+D450-B8
• Aspiration - Natural
• Fuel Regulation/Governor System - Mechanical
• Fuel Consumption (100% Load) [Litres] - 1.71
• Fuel Filter Part No. - D450-R05
• Cooling Forced - Air-Cooled
• Alternator Model - D450/500-S01-2
• Breakers - 3P 9.5A 1P 21A
• Alternator Type - Brushed
• Voltage Regulation - AVR
• Air Filter Part No. - D450-I4
• Net Weight (kg) - 158
• Gross Weight (kg) - 167
• Wheel Kit? - Yes
• Dimensions L x W x H (mm) - 960 x 560 x 890
• Battery (Ah) - 12v 36a/h
• ATS / MTS Compatible - Yes

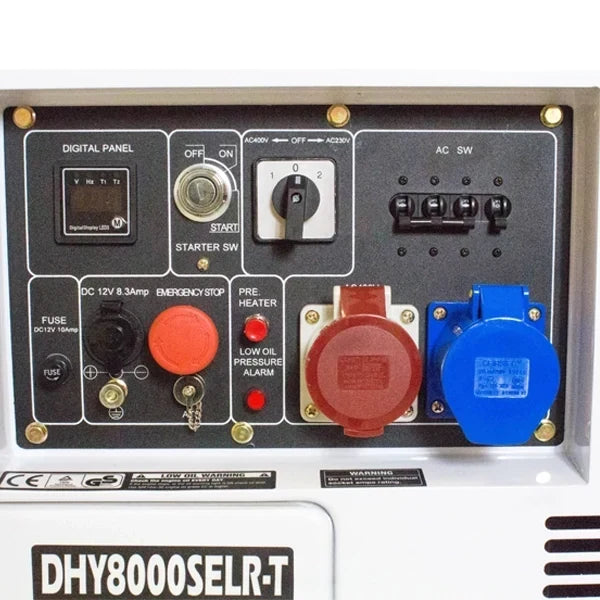

• Control Panel - LED3 DISPLAY
• Model EAN - 600231973434
• Warranty - 1 Year / 1000 Hours* (Terms apply)
