Product Overview

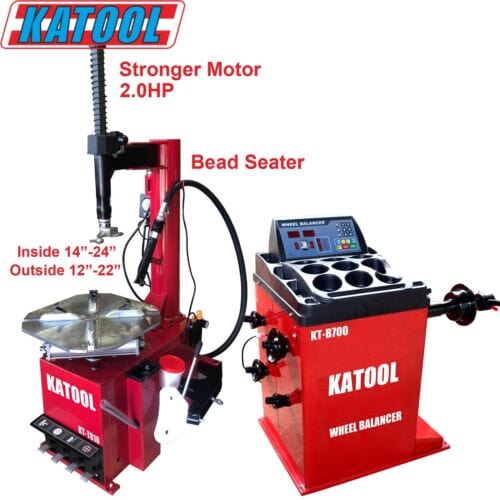

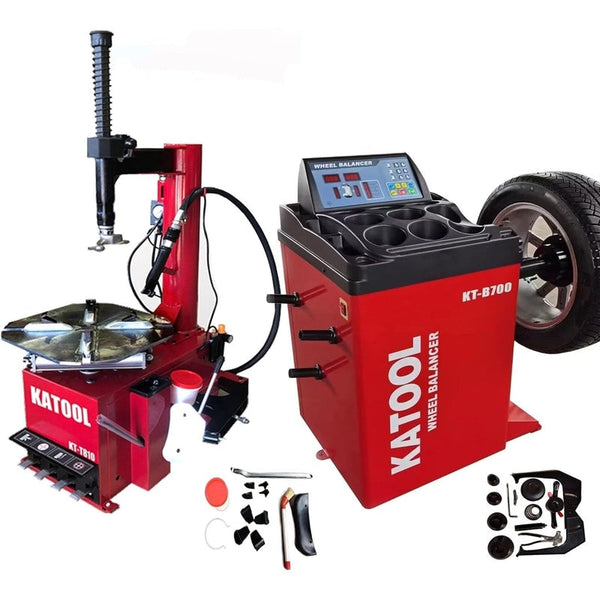

Experience top-tier tire service performance with the Katool Tire Changer KT-T810 & Wheel Balancer KT-B700 Combo — a powerful duo built for precision, durability, and efficiency. The KT-T810 Wheel Clamp Tire Changer features a hardened alloy steel jaw with advanced carburization treatment for exceptional strength and rim protection. Equipped with an inflation gauge, a pull-type pedal control system, and a high-performance motor with pure copper winding, it delivers smooth operation, rapid heat dissipation, and long-term reliability. Its closed-body design safeguards internal components, ensuring lasting performance even in demanding shop environments.
The KT-B700 Wheel Balancer complements this with exceptional accuracy and stability. Constructed from 3mm-thick heavy-duty steel, it features an integrated 8mm pressure sensor support for precision and minimal vibration. Its top-grade motor and advanced sensor system provide consistent, precise balancing across multiple modes. Optional add-ons like a wheel guard and extended shaft make this combo a versatile, professional-grade solution for any tire service center.
Features

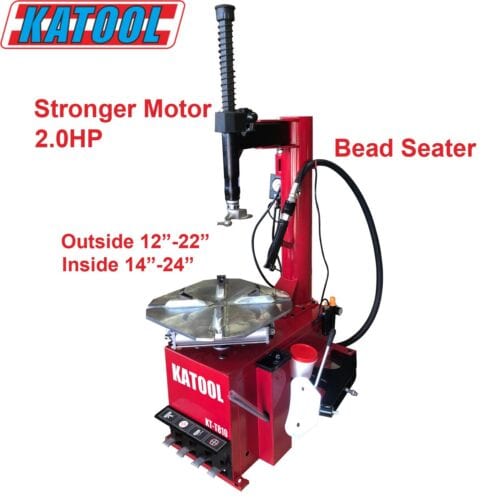

KT-T810 Wheel Clamp Tire Changer
-
Reinforced Alloy Steel Jaw: Carburization depth of 0.8–1.1mm with full quenching for a tough interior and hardened exterior; includes rim-protecting jaw covers.
-
Stainless Steel Mounting Head: Precision-polished and engineered to minimize rim damage; includes plastic rim guard.
-
Pedal-Controlled Inflation System: Offers convenient, hands-free inflation.
-
Protective Spade Cover: Prevents scratches or damage during tire removal and installation.
-
Pull-Type Pedal Control: Provides easy, smooth tire changing and maintenance.
-
High-Efficiency Copper Motor: Ensures more power, better cooling, reduced defect rate, and longer lifespan.
-
Premium Filter System: Delivers reliable oil drops and efficient air filtration for longer pneumatic system life.
-

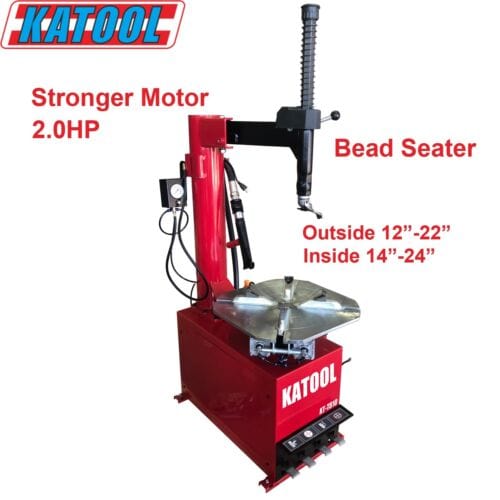

North America-Optimized Power: 120V / 1PH / 2.0HP motor designed for maximum performance and energy efficiency.
-
Closed-Body Structure: Protects internal mechanisms from dust, debris, and damage.
KT-B700 Wheel Balancer
-

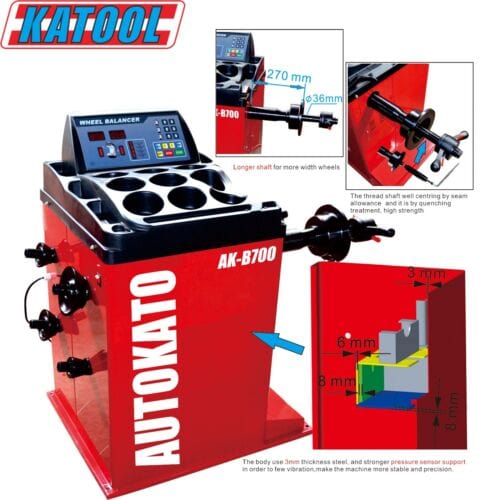

3mm Heavy-Duty Steel Frame: Provides high strength, stability, and vibration resistance.
-
Integrated Pressure Sensor Support: 8mm-thick base and side panels ensure precise and consistent performance.
-
Pure Copper Winding Motor: Offers higher torque, efficient heat management, and longer operational life.
-

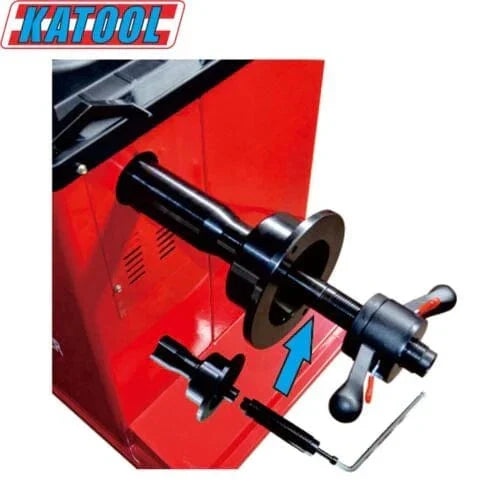

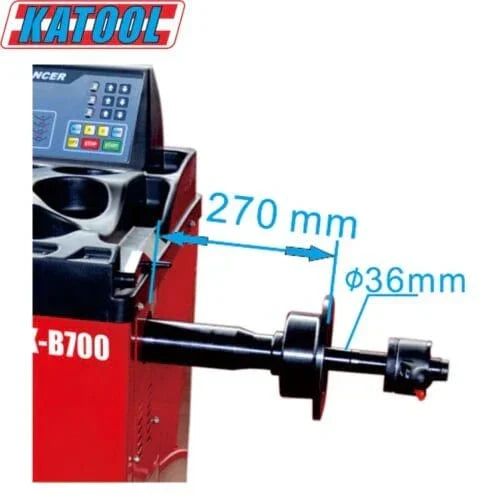

36mm Hardened Shaft Thread: Quenched for superior strength and durability.
-
Advanced Circuit Board: Moisture-proof, dustproof, and anti-static to extend equipment life.
-
Multiple Balance Modes: Adapts to various rim types for accurate results.
-
Automatic Fault Diagnosis & Dual Calibration: Simplifies setup with no preset parameters required.
-
Flexible Measurement Units: Choose between Ounce/Gram and MM/Inch for convenience.
-
Stable Power Board: Integrated design ensures consistent, reliable performance.
-

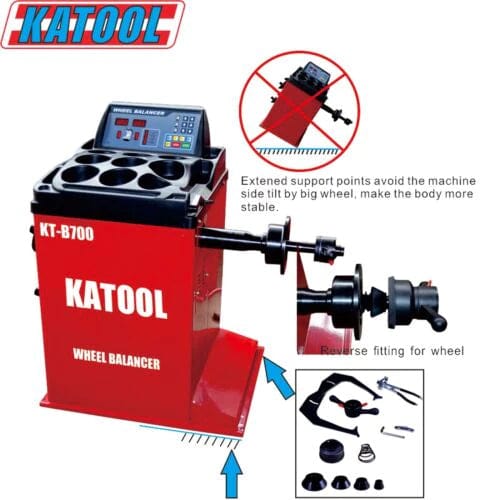

Optional Enhancements: Wheel guard and extended shaft for handling wider wheels.
Specifications

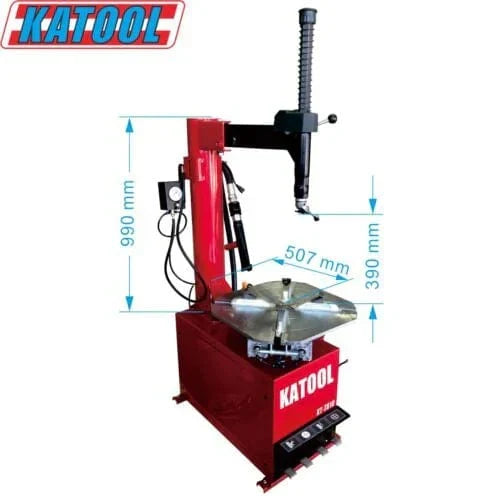

KT-T810 Tire Changer
| Specification |
Value |
| Max Wheel Diameter |
41" (1040mm) |
| Max Wheel Width |
15" (380mm) |
| Outside Clamp Range |
12"–22" |
| Inside Clamp Range |
14"–24" |
| Power Supply |
120V 1PH |
| Motor Power |
2.0HP / 1.5KW |
| Rotation Speed |
6.8 RPM |
| Air Pressure |
0.8–1.0MPa (116–145 PSI) |
| Net Weight |
186 KG |
KT-B700 Wheel Balancer
| Specification |
Value |
| Rim Diameter |
≤30" |
| Wheel Width |
3"–12" |
| Max Wheel Diameter |
≤880mm |
| Balancing Speed |
180 RPM |
| Power Supply |
120V 1PH |
| Motor Power |
0.25KW |
| Rim Center Hole Diameter |
≤135mm |
| Max Wheel Weight |
≤65KG |
| Balancing Accuracy |
±1g |
| Measuring Time |
7 seconds |
Warranty
Katool provides a 1-year limited warranty covering all parts and manufacturing defects, completely free of charge. A 2-year extended warranty is available for added protection.
Warranty Includes:
-
Cylinders, power units, motors, displays, and electronics
-
Vehicle lifts include an additional 3-year structural warranty
Warranty Conditions:
-
Claims must be submitted within the warranty period.
-
Non-transferable and requires proof of purchase or order number from an authorized vendor.
-
Replacement parts and shipping provided at no cost.
-
Labor not included in warranty coverage.
-
Photos or videos may be required for verification before approval.
-
Unauthorized disassembly voids warranty.
-
Out-of-policy repairs and parts are the buyer’s responsibility.
This combo delivers professional-grade performance, durability, and ease of use — making it the ultimate tire-changing and balancing solution for modern workshops.
